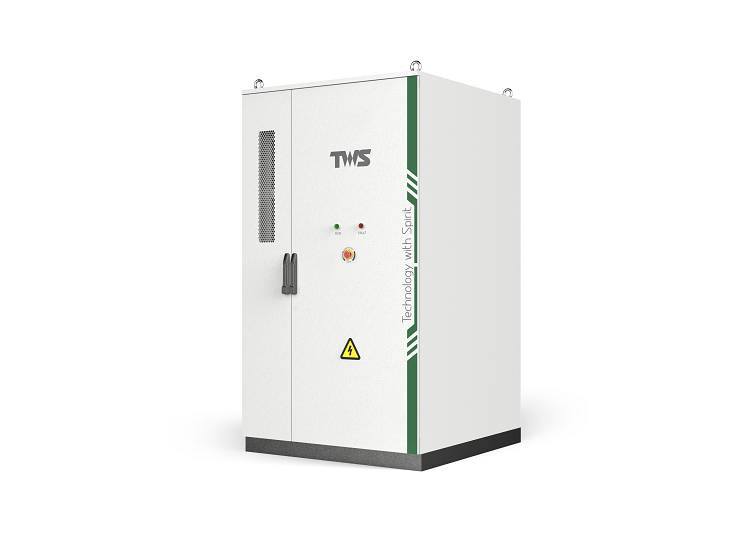

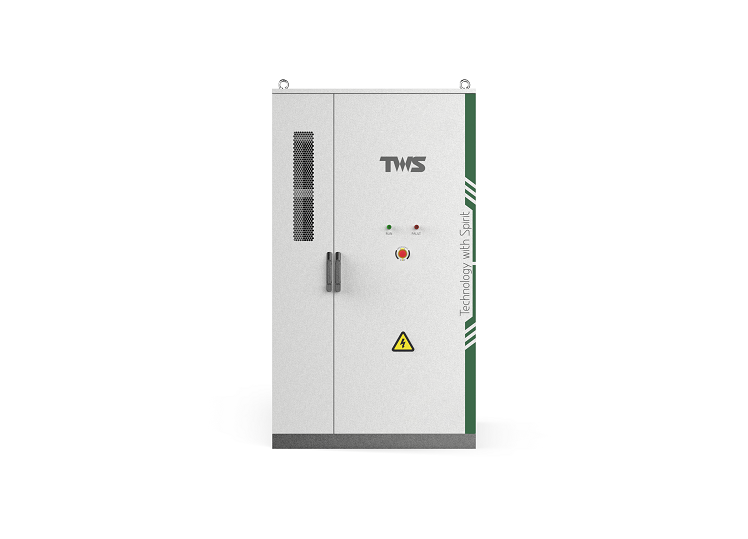

ProeM Liquid-cooling Energy Storage Cabinet

Safe and reliable: Intelligent monitoring and linkage actions ensure battery system safety; Integrated cooling system for thermal safety and enhanced performance and reliability
Efficient and flexible: High-efficiency liquid cooling technology with the temperature difference ≤3℃; modular design supports parallel connection and easy system expansion
Low costs: Modular design ESS for easy transportation and operations & maintenance; all pre-assembled, no site installation
Wide application: 1C system, which can be used for harsh working conditions; fit for different operation scenarios

Technical parameters
Identify different items
PACK parameters
Model ProeM-186-1h ProeM-232-1h ProeM-279-1h ProeM-326-1h ProeM-372-1h
Cell type LFP LFP LFP LFP LFP
Cell capacity 280 Ah 280 Ah 280 Ah 280 Ah 280 Ah
PACK con?guration 1P52S 1P52S 1P52S 1P52S 1P52S
Rated voltage 166.4 V 166.4 V 166.4 V 166.4 V 166.4 V
Energy 46.592 kWh 46.592 kWh 46.592 kWh 46.592 kWh 46.592 kWh
Cabinet parameters

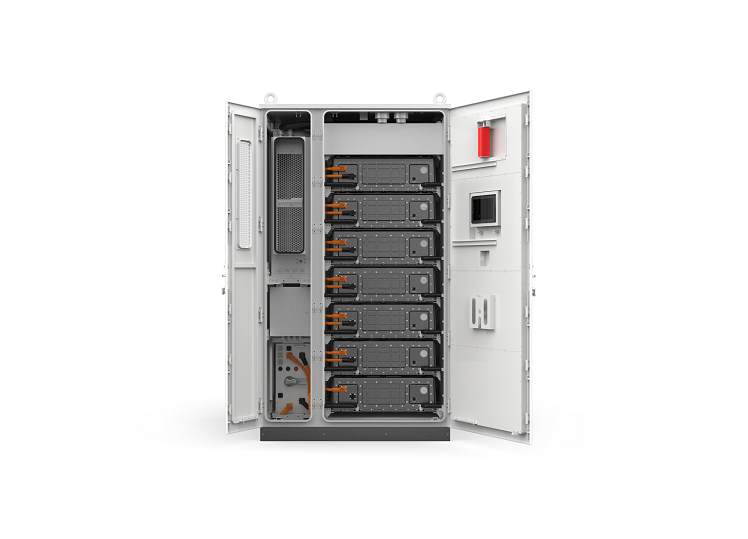

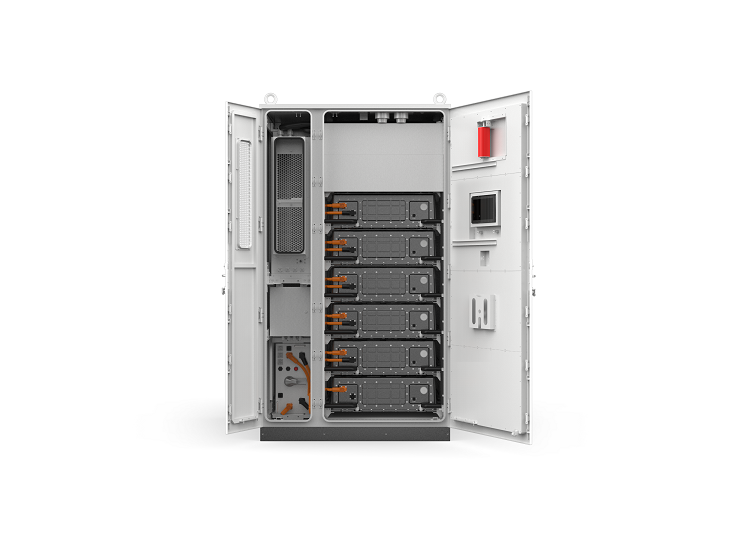

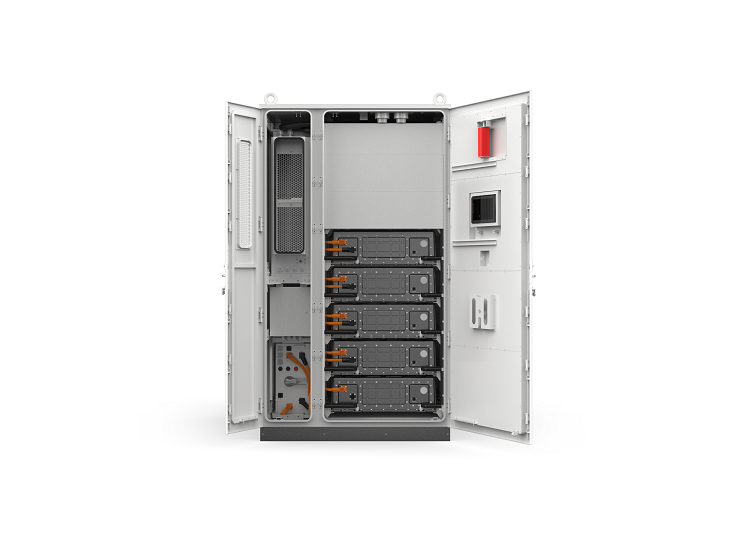

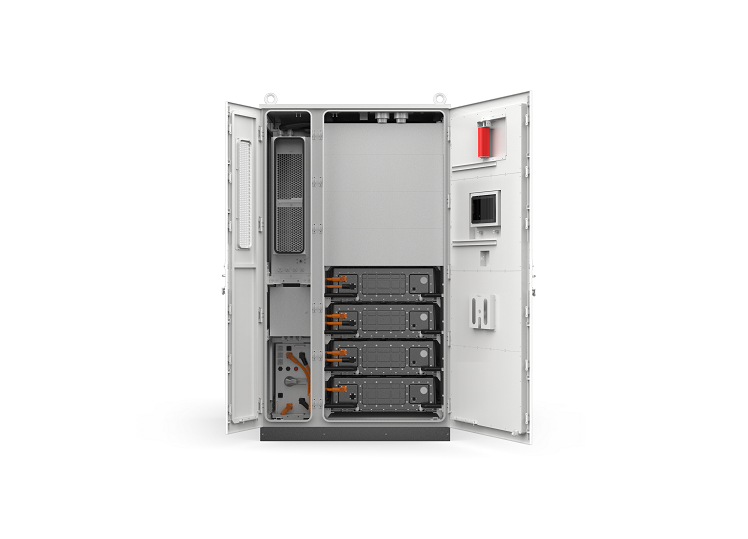

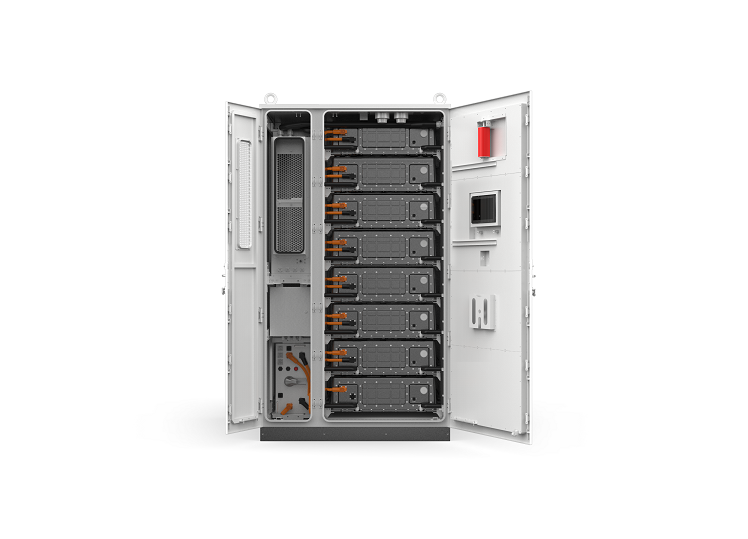

Model ProeM-186-1h ProeM-232-1h ProeM-279-1h ProeM-326-1h ProeM-372-1h
Cabinet configuration 1P208S 1P260S 1P312S 1P364S 1P416S
Qty. of PACK 4 5 6 7 8
Rated energy (BOL) at DC side 186 KWh 232 KWh 279 KWh 326 KWh 372 KWh
Output voltage range 582.4-748.8 Vdc 728.0-936.0 Vdc 873.6-1123.2 Vdc 1019.2-1310.4 Vdc 1164.8-1497.6 Vdc
Rated current 280 A (1C) 280 A (1C) 280 A (1C) 280 A (1C) 280 A (1C)
Dimensions (H*W*D) 2300*1300*1350 mm 2300*1300*1350 mm 2300*1300*1350 mm 2300*1300*1350 mm 2300*1300*1350 mm
Weight 2120 kg 2450 kg 2780 kg 3110 kg 3440 kg
Degree of protection IP54 IP54 IP54 IP54 IP54
Anti-corrosion category C4 C4 C4 C4 C4
Relative humidity 0%~95% (non-condensing) 0%~95% (non-condensing) 0%~95% (non-condensing) 0%~95% (non-condensing) 0%~95% (non-condensing)
Operating temperature range Charging: 0~55℃, Discharging: -20~55℃ Charging: 0~55℃, Discharging: -20~55℃ Charging: 0~55℃, Discharging: -20~55℃ Charging: 0~55℃, Discharging: -20~55℃ Charging: 0~55℃, Discharging: -20~55℃
Maximum working altitude 2000 m 2000 m 2000 m 2000 m 2000 m
Type of cooling Liquid-cooling Liquid-cooling Liquid-cooling Liquid-cooling Liquid-cooling
Fire safety equipment Aerosol Aerosol Aerosol Aerosol Aerosol
Communication interface Ethernet Ethernet Ethernet Ethernet Ethernet
Communication protocol Modbus TCP Modbus TCP Modbus TCP Modbus TCP Modbus TCP
Certifications IEC62619, IEC63056, IEC62477, EN61000, UL9540A, UL1973, UN38.3
